Jimbo604 · #**1181** Posted **Feb 9, 2022, 5:55 PM**

Quote:

Originally Posted by logan5

The Broadway Plan will allow high-rise strata here, so I don't think it will stay just a station for very long. That mural is one of the best (imo) to come from the Mural Fest. Too bad it will not be very visible when that corner is developed.

I'd wager that this site will be the same five years later as it was on subway opening-day. Also too bad the one storey building in the picture wasn't included as well for the subway construction, lost opportunity for more den$ity!

Jimbo604 · #**1182** Posted **Feb 9, 2022, 6:07 PM**

Some Feb 4 updates at the project website:
https://www.broadwaysubway.ca/construction/current-work/

Emily Carr:
"• February: Continuing bulk excavation; completing water line relocation along Earl Finning Way; completing the relocation of utilities on Carolina Street and E. 1st Ave; beginning the installation of the elevated guideway columns; and conducting geotechnical surveys.
• March - April: Continuing the construction of the elevated guideway columns; commencing station concrete work; and managing the arrival and assembly of the first tunnel boring machine"

Main Street:
"• February: Completing the south side excavation of the road surface; increasing traffic from three to four lanes onto the completed traffic deck; and beginning excavation under traffic deck for the underground station."

Cambie/Granville/Arbtutus
decks: got a while longer on these ones

and some other stuff

idunno · #**1183** Posted **Feb 9, 2022, 7:10 PM**

Can't wait till we see those columns rising!

mattropolis · #**1184** Posted **Feb 10, 2022, 8:47 PM**

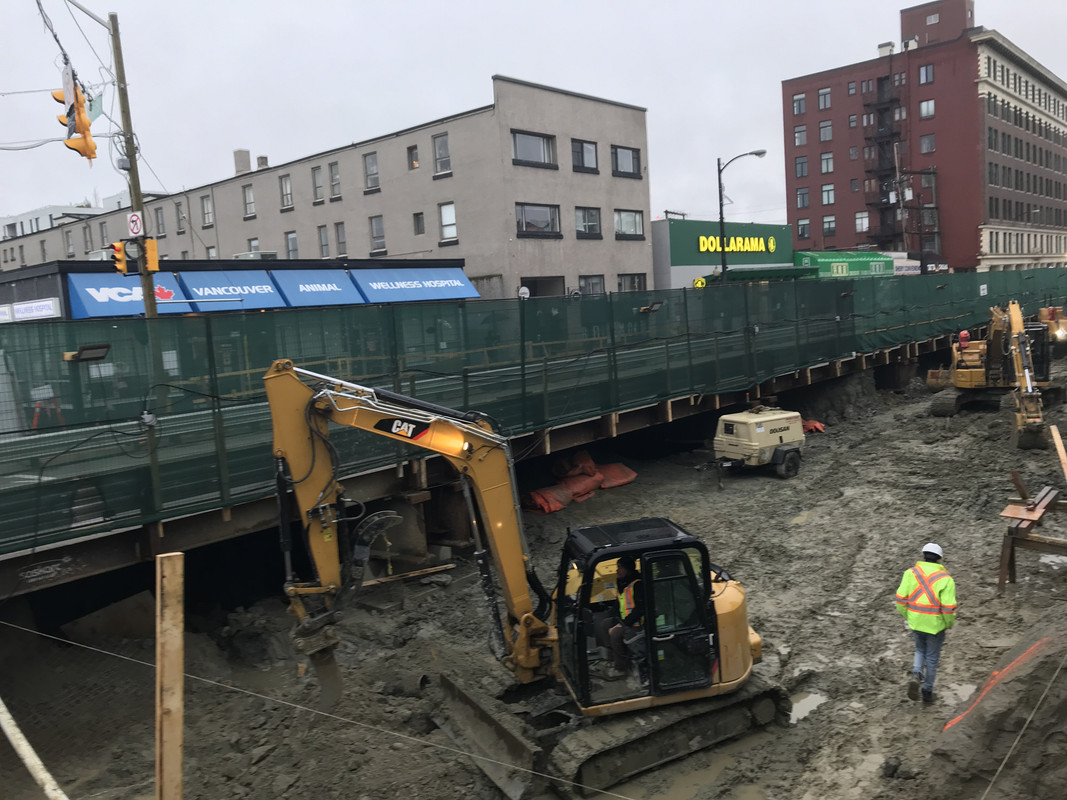

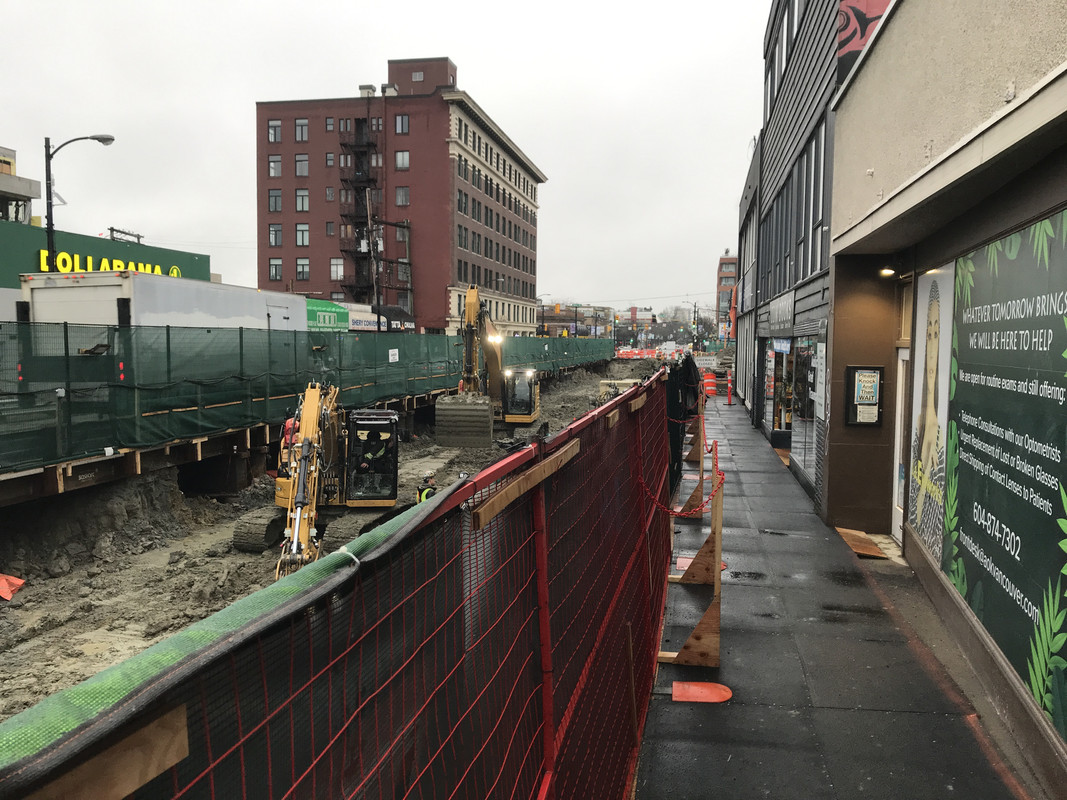

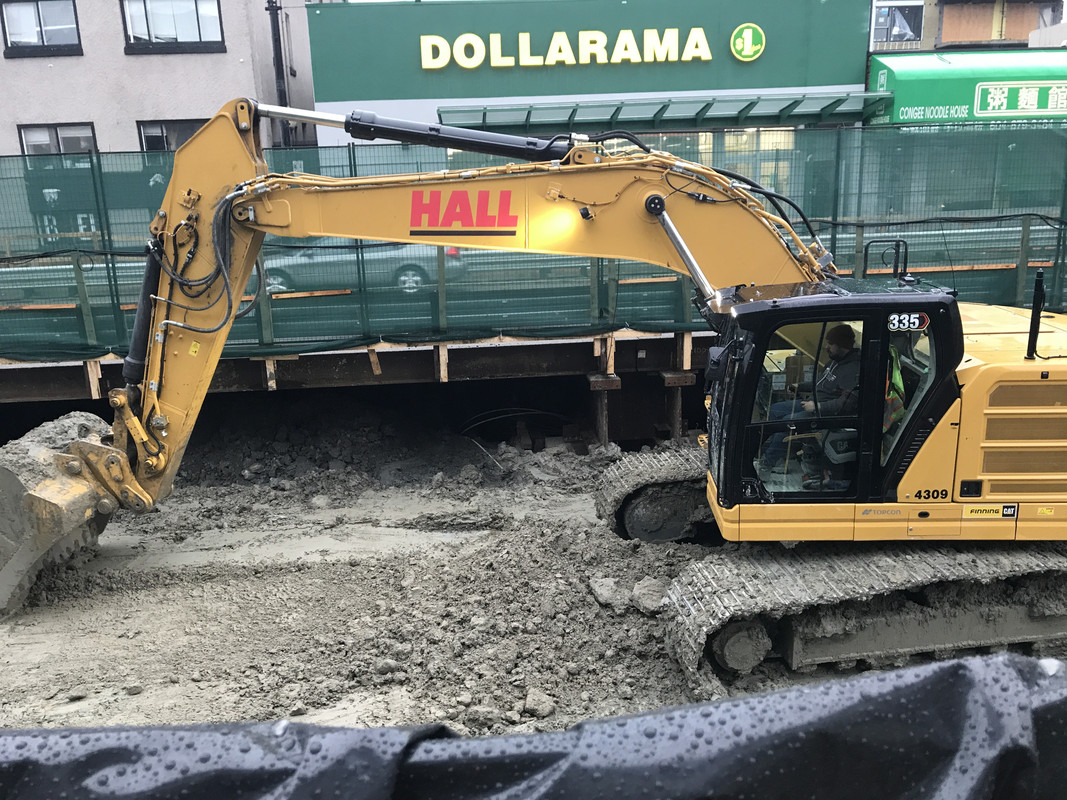

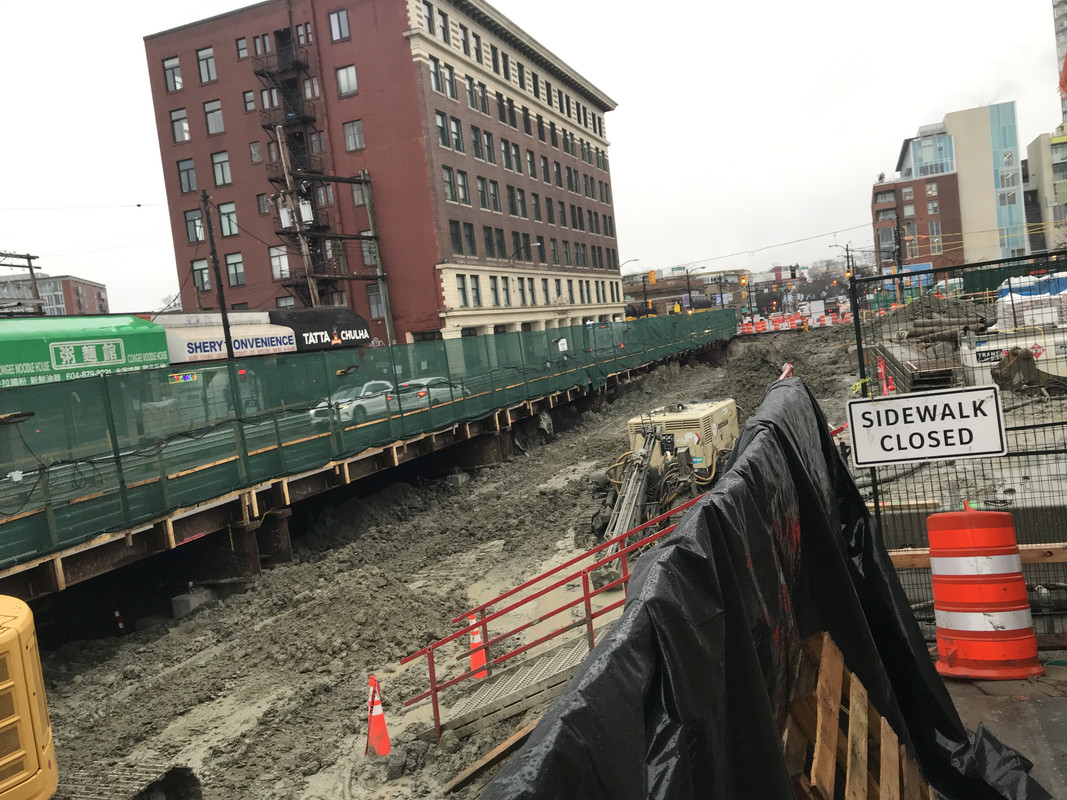

My pictures of the work at Mt Pleasant stations from the the Broadway south sidewalk.

officedweller · #**1185** Posted **Feb 10, 2022, 9:57 PM**

Great shots, thanks!

Zepfancouver · #**1186** Posted **Feb 11, 2022, 4:36 AM**

The Province today Tunnel boring machines to start work on Broadway Subway project in spring

Hooknose · #**1187** Posted **Feb 15, 2022, 3:28 AM**

On Van Isle for the next three weeks, can someone grab some images from the roof deck of No Frills
two blocks being torn up there, as well as the area east of the Cambie station being used for staging
thanks

Feathered Friend · #**1188** Posted **Feb 19, 2022, 3:22 AM**

January 3rd, 2022

January 15th, 2022

January 22nd, 2022

January 25th, 2022

February 4th, 2022

January 15th 2022

January 22nd 2022

February 4th, 2022

Feathered Friend · #**1189** Posted **Feb 19, 2022, 3:32 AM**

South Granville Station - February 4th, 2022 - My Photos

Feathered Friend · #**1190** Posted **Feb 19, 2022, 3:37 AM**

February 4th, 2022

February 7th, 2022

Mount Pleasant Station - February 4th & 7th, 2022 - My Photos

Feathered Friend · #**1191** Posted **Feb 19, 2022, 3:50 AM**

February 7th, 2022 - My Photo - VGH-Oak St. Station

Apologies for the massive photo pile, but hopefully everyone enjoys going through it

madog222 · #**1192** Posted **Feb 19, 2022, 4:10 AM**

Thanks!

officedweller · #**1193** Posted **Feb 19, 2022, 5:55 AM**

Nice series - much easier to see the weekly changes when they're next to each other.
Thanks!

officedweller · #**1194** Posted **Feb 22, 2022, 10:52 PM**

From Broadway Subway twitter:

https://twitter.com/broadwaysubway_/status/1494097902624559107/photo/1

https://twitter.com/broadwaysubway_/status/1494733513509199882/photo/1

VancouverOfTheFuture · #**1195** Posted **Feb 23, 2022, 12:38 AM**

because it is only 700m of guideway, does anyone know if it will be like the Canada/Millennium Line where they used that flying crane thing that assemble multiple sections, or will it be more like the Expo-Line where they used long 1 section between columns.

i would assume the latter.

mattropolis · #**1196** Posted **Feb 23, 2022, 12:40 AM**

It is the latter. Too short to bother with the gantry crane.

madog222 · #**1197** Posted **Feb 23, 2022, 1:22 AM**

Quote:

Originally Posted by VancouverOfTheFuture

because it is only 700m of guideway, does anyone know if it will be like the Canada/Millennium Line where they used that flying crane thing that assemble multiple sections, or will it be more like the Expo-Line where they used long 1 section between columns.

i would assume the latter.

More precisely it will be just like the elevated section of the evergreen extension just East of the tunnel in Port Moody.
https://goo.gl/maps/phHAV1dX3dA8GeAAA

This video shows the process.
https://youtu.be/fLyA3c3O41Q?t=118

Jimbo604 · #**1198** Posted **Feb 24, 2022, 5:31 PM**

Photo Source: me

First column being placed behind the Tim Horton's 889 Great Northern Way.

Seems taller than I expected but it probably hasn't been placed to it's installed height yet in these photos.

Jimbo604 · #**1199** Posted **Feb 24, 2022, 5:35 PM**

Photo source: me

Busy at Emily Carr station. Also they have gone full "No-Lookee-Loo" with a new plywood fence running the length of the site facing Great Northern Way except for a small number of plexiglass viewing windows. This makes for some reflections, etc in some of the pictures.

MIPS · #**1200** Posted **Feb 24, 2022, 6:22 PM**

Quote:

Originally Posted by Jimbo604

Busy at Emily Carr station. Also they have gone full "No-Lookee-Loo" with a new plywood fence running the length of the site facing Great Northern Way except for a small number of plexiglass viewing windows. This makes for some reflections, etc in some of the pictures.

I've had problems with TransLink and photography for over a decade. They get really uptight with people standing around snapping photos and every time I called media relations to actually do this properly I was told either I couldn't get permission to film or photograph because they had a moratorium regarding media information while construction was ongoing (and its been perpetual for at least a decade now) or because I did not associate with any recognized media outlets my applications were rejected.

I think blocking off the view and putting in tiny windows is par for the course.
