The Butterfly | 178.6m | 57Fl | Completed

[Zepfancouver]

Today, Ironworkers have just a couple more loose ends to tie in, then I'm thinking next week back onto the installation of panels.

More obstructions to give them pause on installing a Derrick Crane



....• Video Link
https://makeagif.com/i/DxGDPG

[officedweller]

You can see that every 3rd breezeway floor will have a tree since 2 floors are more recessed above them, except when you get to the top 5 floors.

Originally Posted by Zepfancouver

Not much room or options for setting up a derrick crane. I'm rooting for the helicopter for our viewing pleasure.

[jollyburger]

Originally Posted by officedweller

You can see that every 3rd breezeway floor will have a tree since 2 floors are more recessed above them, except when you get to the top 5 floors.

It seems like the top five floors will have some kind of enclosed glass treatment



https://westbankcorp.com/body-of-work/the-butterfly

[Zepfancouver]

Originally Posted by officedweller

You can see that every 3rd breezeway floor will have a tree since 2 floors are more recessed above them, except when you get to the top 5 floors.

Hey, you're right, I wondered about that since the 14th floor (12th floor was my first sight line of the build), now we know
I was questioning the privacy in those breeze ways, thinking people will be able to see tenants come and go, the trees will block that view.

[officedweller]

Ah thanks, penthouses get weather protection!

[madog222]

That section is part of the sub penthouse and penthouse units, the elevator landing on those floors is much smaller. https://www.livabl.com/vancouver-bc/the-butterfly/condo-plan--01-sub-penthouse#image-All-1

[VantageHD]

Such a cool design that you come off the elevator on each floor to an open air common space before going in to your unit.

[officedweller]

Thanks, that makes sense, but do those suites only have access from 2 elevators?

[madog222]

Originally Posted by officedweller

Thanks, that makes sense, but do those suites only have access from 2 elevators?

That’s what it looks like to me, there is a pocket door to the other unit’s side but that’s probably just meant for emergency egress.

[jollyburger]

Here's the floorplans from the rezoning (not sure if they are out of date or not)

https://web.archive.org/web/201907222032...tions/969burrard/documents/Pg191-209.pdf

The penthouses have private elevators to their roof decks.

[Zepfancouver]

Today, balcony glass. I like these (for some people, shoulder height) clear glass panels.



56th floor pre cast panels going in today

....• Video Link
https://makeagif.com/i/PzBL3J

[Zepfancouver]

This morning.
Interesting, working on a Saturday long weekend, taking down the staging. They must have an important scheduled delivery on Tuesday or early next week, the BMU and tracks?




https://makeagif.com/i/B3yYyD

[jollyburger]

Originally Posted by Zepfancouver

This morning.
Interesting, working on a Saturday long weekend, taking down the staging. They must have an important scheduled delivery on Tuesday or early next week, the BMU and tracks?

This is the detailed roof sections

https://web.archive.org/web/201907191056...cations/969burrard/documents/Pg73-76.pdf

And the other elevations of the tower in general:

https://web.archive.org/web/201907221931...tions/969burrard/documents/Pg216-218.pdf

[Zepfancouver]

Originally Posted by jollyburger

This is the detailed roof sections...

And I see glass bottom pools https://vancouver.ca/files/cov/969-burrard-appendix-d-part-1.pdf Page 56
I'm wondering if they're prefabs and will be craned up to the roof?
As you can tell by my thinking, I'm looking to capture anything swinging 600 feet in the air, swimming pools, H-Vac units, BMU and the tower crane

[Zepfancouver]

Today. No prefabricated pools, but captured 2 expensive bottom glass for the pools, deserving of dramatic music for the video, (maybe I over did it on the music )
The penthouse kitchens will have some nice natural lighting.



....• Video Link
https://makeagif.com/i/2jIoqp

Some intel on what is on the backside of the balcony panels.


https://makeagif.com/i/qSqV8a

[Zepfancouver]

Yesterday, delivery of the last of the arch glass.
I was trying to capture the completion of the arch, at 1:10 pm today but no change from Lexus Post #1396 of July 23, 2023
I'll try again next week.

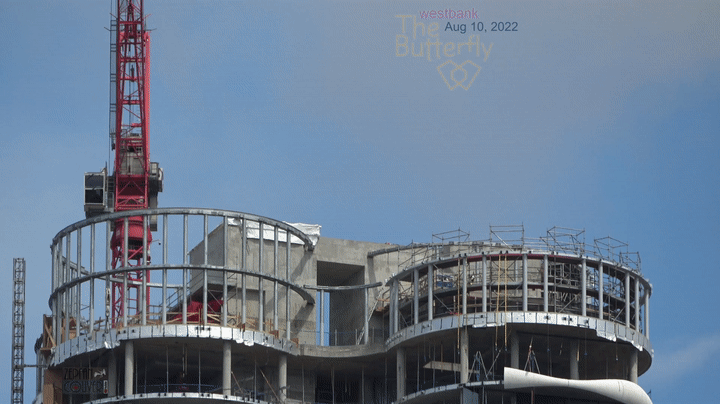

Gif is yesterday....Image today at 1:10 pm

....
https://makeagif.com/i/kWKKja

[jollyburger]

Drone footage of the pools being lifted up.

https://www.instagram.com/p/Cv0iYBRLn2J/

[Zepfancouver]

Originally Posted by jollyburger

Drone footage of the pools being lifted up.
https://www.instagram.com/p/Cv0iYBRLn2J/

It happened on Aug 3rd, the only day in the past 2 weeks my camera was not on it's always the way.

[officedweller]

By me today -
Cladding being applied to the top slab:

[Zepfancouver]

Originally Posted by officedweller

By me today -
Cladding being applied to the top slab:

[img]...[/img]

Ooh! Some big glass to be installed on level 56, as long as they don't pull a top floor B6 spandrel glass panels on us
