  #861
Old Posted Feb 18, 2013, 12:50 AM
ardecila's Avatar
ardecila ardecila is offline
TL;DR

Join Date: Jun 2006
Location: the city o'wind
Posts: 16,948

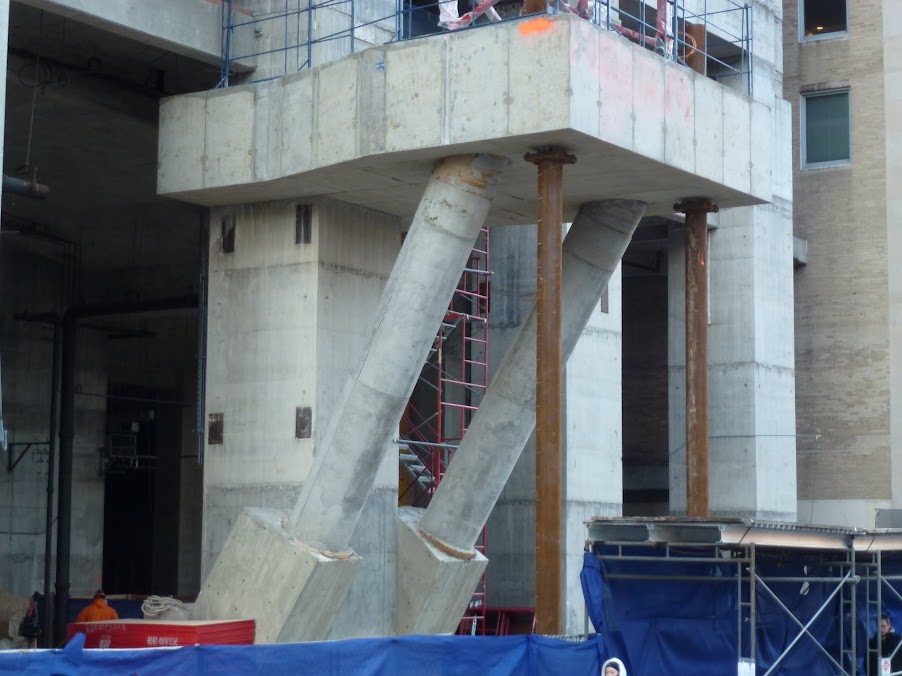

I agree with kayosthery, they should keep the platform as an entrance canopy. It 's off-center, and it would fit within the larger De Stijl/lightcycle design concept.
__________________
la forme d'une ville change plus vite, hélas! que le coeur d'un mortel...


  #862
Old Posted Feb 18, 2013, 2:20 AM
Rizzo Rizzo is offline
Registered User

Join Date: Jun 2004
Location: Chicago
Posts: 7,296


That's clearly the most innovative thing Chicago has built in the past couple of decades. But of course we'll have to tear it down eventually because it's innovative.... I mean "ugly"


  #863
Old Posted Feb 18, 2013, 2:21 AM
texcolo's Avatar
texcolo texcolo is offline
Registered User

Join Date: Nov 2003
Location: Truth or Consequences, NM
Posts: 3,919
Quote:
Originally Posted by harryc View Post
If mistakes were non-existent, then you wouldn't need the highly paid pros, if They don't make ANY mistakes, then they aren't being pushed hard enough. It is a delicate balancing act.

And then there are always days ......
(345 E Wacker)
They blew out the forms. The forms weren't put together correctly. The concrete looks fine.

The amount of water in concrete is referred to as the slump. The higher the slump the more water is in the concrete.


source

The slump is determined by using a slump cone. You fill the cone with concrete and then lift the cone in a 5 second (+/- 2 seconds) time period. However far the mud falls is your slump.

They usually want a slump of 6-8 inches to pump it up several stories, so a high slump in this case would be good. It also cuts down on 'honey-combing', or holes in your wall or column that could go as deep as to expose the rebar.

Sometimes the crew gets in a hurry and doesn't tie up the forms correctly or the forms just fail after repeated use.
__________________
"I am literally grasping at straws." - Bob Belcher

Last edited by texcolo; Feb 18, 2013 at 4:41 AM.


  #864
Old Posted Feb 22, 2013, 8:41 PM
harryc's Avatar
harryc harryc is offline
Registered User

Join Date: Jun 2007
Location: Oak Park, Il
Posts: 14,941

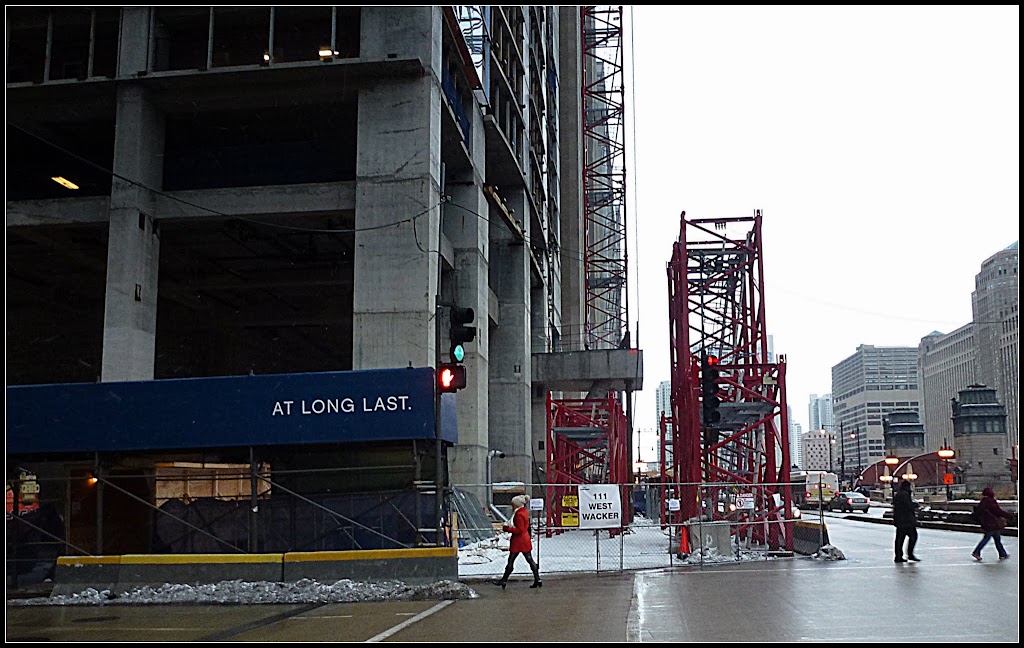

The Crane rises

Feb 19



The BridgeHouse will be a great place for a drink or meal while watching the progress





The protected walkway along Wacker has been removed, the new pedestrian route is through the building lobby.








Feb 21


111 W Wacker Lower

111 W Wacker Core

111 W Wacker Related
__________________
Harry C - Urbanize Chicago- My Flickr stream HRC_OakPark
The man who trades freedom for security does not deserve nor will he ever receive either. B Franklin.


  #865
Old Posted Feb 22, 2013, 8:45 PM
J_M_Tungsten's Avatar
J_M_Tungsten J_M_Tungsten is offline
Registered User

Join Date: May 2009
Location: Chicago
Posts: 3,379
I can't imagine what it must take to bring a building back to life.


  #866
Old Posted Feb 22, 2013, 10:17 PM
kayosthery kayosthery is offline
Registered User

Join Date: Oct 2005
Posts: 301
Quote:
Originally Posted by J_M_Tungsten View Post
I can't imagine what it must take to bring a building back to life.
The "kiss of fire" from a Red Priest(ess) of R'hllor...












or many years and rounds of redesign / re-engineering.
__________________
Paper is fine, nerf Rock. Signed - Scissors.


  #867
Old Posted Feb 22, 2013, 10:24 PM
J_M_Tungsten's Avatar
J_M_Tungsten J_M_Tungsten is offline
Registered User

Join Date: May 2009
Location: Chicago
Posts: 3,379
I mean each floor and column that took the brunt of the change of seasons, the years of critters that have probably hid out in there, and overall sanitary conditions (bird droppings). A lot of work. Gotta give the workers a lot of credit on the progress occurring in front of us.


  #868
Old Posted Feb 24, 2013, 8:31 PM
J_M_Tungsten's Avatar
J_M_Tungsten J_M_Tungsten is offline
Registered User

Join Date: May 2009
Location: Chicago
Posts: 3,379
Now
Crane is getting tall


  #869
Old Posted Mar 2, 2013, 3:40 AM
harryc's Avatar
harryc harryc is offline
Registered User

Join Date: Jun 2007
Location: Oak Park, Il
Posts: 14,941
Feb 25
Already at the top, and not stopping


Feb 27
Love the symetry




Feb 28
"sistering" the columns


March 1
As seen from Michigan Ave.



earlier that morning
111 W Wacker Lower

111 W Wacker Core

111 W Wacker Related
__________________
Harry C - Urbanize Chicago- My Flickr stream HRC_OakPark
The man who trades freedom for security does not deserve nor will he ever receive either. B Franklin.


  #870
Old Posted Mar 7, 2013, 11:54 PM
J_M_Tungsten's Avatar
J_M_Tungsten J_M_Tungsten is offline
Registered User

Join Date: May 2009
Location: Chicago
Posts: 3,379
This morning




  #871
Old Posted Mar 8, 2013, 4:38 PM
lemodulorman lemodulorman is offline
Registered User

Join Date: Dec 2009
Posts: 7
3/8/2013 Update

I mostly just follow projects here but I have a pretty good view of this one so I'll try to start posting photos more often...

They started pouring the columns on the top level and have already began removing the forms this morning. A lot of work is going on building the forms and assembling the rebar. This photo was taken with my phone but I'll start taking more with my canon.



  #872
Old Posted Mar 8, 2013, 4:59 PM
tele75's Avatar
tele75 tele75 is offline
Registered User

Join Date: Jul 2011
Location: Sherwood Park/Edmonton
Posts: 251
Awesome. Thanks!


  #873
Old Posted Mar 8, 2013, 5:33 PM
HomrQT's Avatar
HomrQT HomrQT is offline
All-American City Boy

Join Date: Dec 2009
Location: Hinsdale / Uptown, Chicago
Posts: 1,955
Quote:
Originally Posted by lemodulorman View Post
I mostly just follow projects here but I have a pretty good view of this one so I'll try to start posting photos more often...

They started pouring the columns on the top level and have already began removing the forms this morning. A lot of work is going on building the forms and assembling the rebar. This photo was taken with my phone but I'll start taking more with my canon.

Oh wow, your view must be amazing.
__________________
1. 9 DeKalb Ave - Brooklyn, NYC - SHoP Architects - Photo
2. American Radiator Building - New York City - Hood, Godley, and Fouilhoux - Photo
3. One Chicago Square - Chicago - HPA and Goettsch Partners - Photo
4. Chicago Board of Trade - Chicago - Holabird & Root - Photo
5. Cathedral of Learning - Pittsburgh - Charles Klauder - Photo


  #874
Old Posted Mar 8, 2013, 5:37 PM
jcchii's Avatar
jcchii jcchii is offline
Content provider

Join Date: Jul 2003
Location: city on the take
Posts: 3,118
should be interesting to see the first new floor


  #875
Old Posted Mar 8, 2013, 5:51 PM
Design-mind's Avatar
Design-mind Design-mind is offline
Registered User

Join Date: Oct 2012
Posts: 4,652
I count another 34 storeys until they top off. Hopefully my count was correct.


  #876
Old Posted Mar 9, 2013, 1:13 PM
harryc's Avatar
harryc harryc is offline
Registered User

Join Date: Jun 2007
Location: Oak Park, Il
Posts: 14,941
Heading up

March 7
As seen from Michigan Ave.




March 8













111 W Wacker Lower

111 W Wacker Core

111 W Wacker Related
__________________
Harry C - Urbanize Chicago- My Flickr stream HRC_OakPark
The man who trades freedom for security does not deserve nor will he ever receive either. B Franklin.


  #877
Old Posted Mar 11, 2013, 7:57 PM
Design-mind's Avatar
Design-mind Design-mind is offline
Registered User

Join Date: Oct 2012
Posts: 4,652
Awesome updates as per usual harryc.
Do they still have the old Flying formwork tables, or are they going to have to reconstruct them?


  #878
Old Posted Mar 11, 2013, 11:39 PM
andydie's Avatar
andydie andydie is offline
Registered User

Join Date: Aug 2007
Location: Hannover, Germany
Posts: 588
Smile old before new vid

Hello friends and skyscraperfans,

before i do an update for what is now 111 West Wacker heres a reminder what was built till construction stoped:

watch here or double klick for the larger version:
Video Link


http://www.youtube.com/watch?v=toNtdNboRp8

Music: Funkerman - Speed Up (Vincent Martin Vs Sidekick Rmx)

Special thanx to Harry C and all others for the awesome photo updates


  #879
Old Posted Mar 12, 2013, 12:16 AM
J_M_Tungsten's Avatar
J_M_Tungsten J_M_Tungsten is offline
Registered User

Join Date: May 2009
Location: Chicago
Posts: 3,379
Awesome job Andy! And a big thanks to all the long time posters who have continuously posted high quality photos over the years. It is always nice to see updates from many different vantage points. It is appreciated.


  #880
Old Posted Mar 12, 2013, 2:44 PM
lemodulorman lemodulorman is offline
Registered User

Join Date: Dec 2009
Posts: 7
3/12 Update

The columns are going up rather quickly and they are already starting to erect the forms for the next level.
