CHICAGO | Waterview Tower | 1,047' Official / 1,035' Roof | 89 FLOORS |NEVER BUILT - Page 48

harryc · #**941** Posted **Oct 15, 2007, 5:34 PM**

A rainy day is still a good day in Chicago.

Alliance · #**942** Posted **Oct 15, 2007, 6:22 PM**

Quote:

Originally Posted by harryc

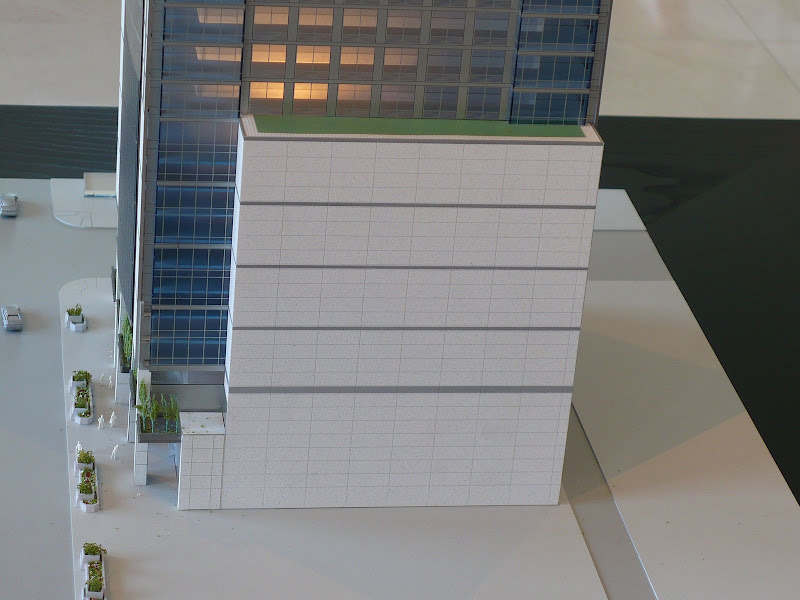

I really like the little setback.

budman · #**943** Posted **Oct 15, 2007, 7:43 PM**

Quote:

Originally Posted by Alliance

I really like the little setback.

^Does anyone know the purpose of that little setback? Why not just have the building come out flush at that point with the rest of the front facade?

BVictor1 · #**944** Posted **Oct 15, 2007, 8:06 PM**

Quote:

Originally Posted by budman

^Does anyone know the purpose of that little setback? Why not just have the building come out flush at that point with the rest of the front facade?

My guess is to allow some light into LaSalle-Wacker. You don't want to make that place unrentable.

harryc · #**945** Posted **Oct 15, 2007, 8:31 PM**

Quote:

Originally Posted by budman

^Does anyone know the purpose of that little setback? Why not just have the building come out flush at that point with the rest of the front facade?

The garage goes right up to LaSalle Wacker - but the occupied part has a significant separation ( meter or 2 ) between the buildings, this set back will de-emphasize the garage portion and not break up the vertical lines. ( when viewed from the North ).

budman · #**946** Posted **Oct 15, 2007, 9:35 PM**

Thanks guys.

Nowhereman1280 · #**947** Posted **Oct 16, 2007, 3:46 AM**

Another photo of Waterview, this time from more to the west, this will be the widest angle of the building when it is finished, I figured we should get a few pics from this direction on here.

harryc · #**948** Posted **Oct 16, 2007, 11:00 AM**

Quote:

Originally Posted by Nowhereman1280

Another photo of Waterview, this time from more to the west, this will be the widest angle of the building when it is finished, I figured we should get a few pics from this direction on here.

Thinking ahead ... thanks.

dubai 1 · #**949** Posted **Oct 16, 2007, 9:35 PM**

sorry, if it's pretty chessey. i'll update it when i have time

dallasbrink · #**950** Posted **Oct 16, 2007, 10:04 PM**

Quote:

Originally Posted by dubai 1

sorry, if it's pretty chessey. i'll update it when i have time

Its fine, its gets the pint across.

APPRAISER · #**951** Posted **Oct 16, 2007, 10:23 PM**

Lots to go!

dubai 1 · #**952** Posted **Oct 17, 2007, 12:54 AM**

Quote:

Originally Posted by dallasbrink

Its fine, its gets the pint across.

Thanks

harryc · #**953** Posted **Oct 17, 2007, 1:50 AM**

Styrofoam fill ( ramp start from Clark ( E )

Curving around the NW courner

N side

Another example of the ramp in the lobby ( 111 S Wacker )

philliesphinest · #**954** Posted **Oct 17, 2007, 2:37 AM**

This building rocks!!!!!!!!!!!!!!!!!!!!!!!!!

budman · #**955** Posted **Oct 18, 2007, 1:28 AM**

Quote:

Originally Posted by harryc

Styrofoam fill ( ramp start from Clark ( E )

Curving around the NE courner

N side

Another example of the ramp in the lobby ( 111 S Wacker )

^That is actually curving around the NW corner. And are you sure that the ramp is going to come through the lobby like that? I was by the site today, and it didnt occur to me that the ramp would come through the lobby a la Deloit until you mentioned it...would be pretty cool though, as long as it didnt take away from the lobby height. Also, I think there are going to be stairs going up to the second level, and how would that be possible with the ramp going through the lobby?
